Technical data sheet

Water Filled Submersible Motor (3'' – 8'')

Rewindable Water Lubricated (WL) submersible motor manufactured to IS:9283 / IEC 60034. Full frame range 3'' to 8'' covering 0.37 kW (0.5 HP) through 75 kW (100 HP), with polywrapped or PVC enamelled winding, stainless steel motor body, and carbon vs. SS thrust bearing for long service life. Suitable for vertical and horizontal installation in clean borewell water with cooling flow ≥ 0.2 m/s.

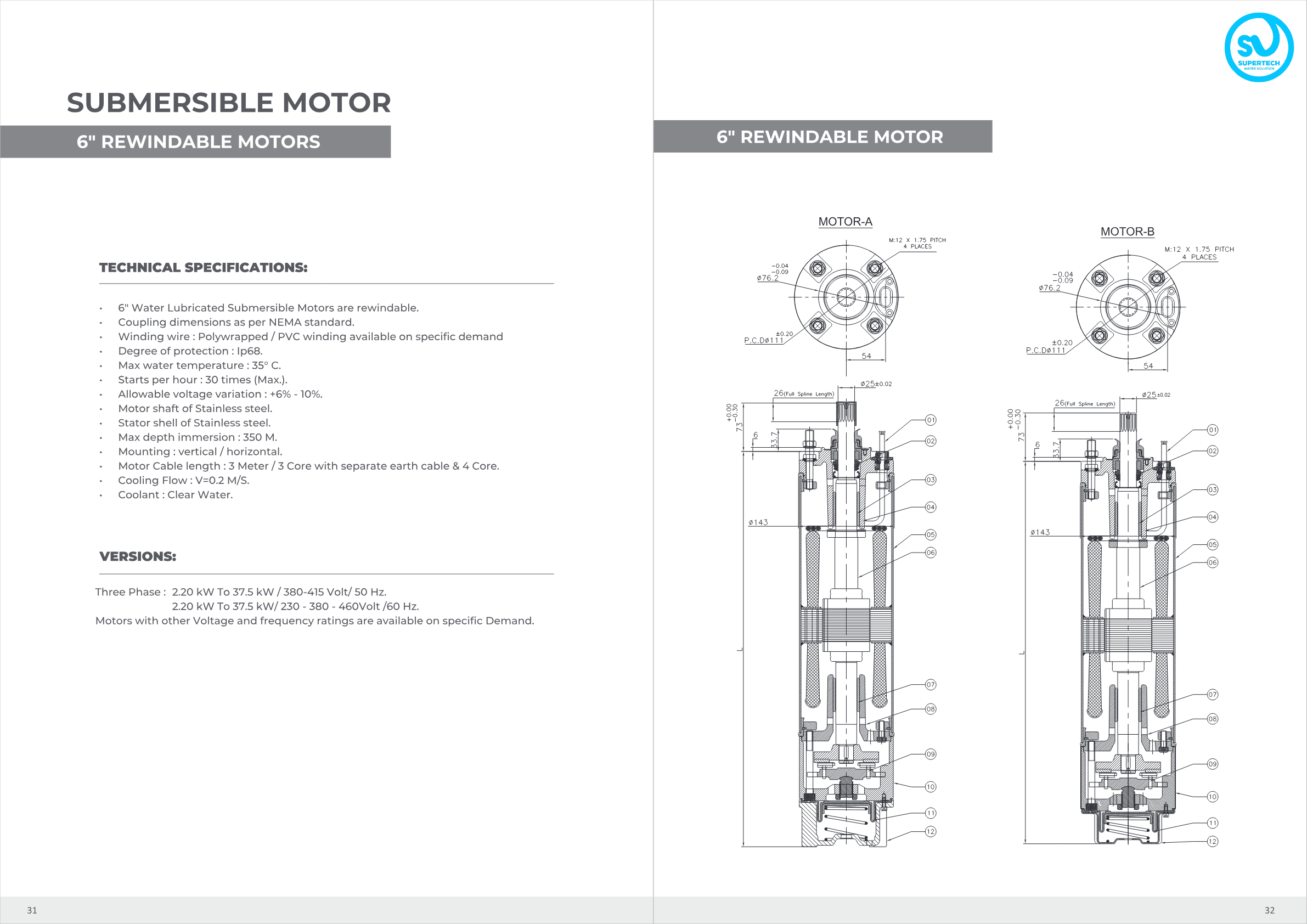

6'' water-lubricated rewindable submersible motor — Motor-A & Motor-B cross-sections, dimensional drawing

From the engineering catalogue

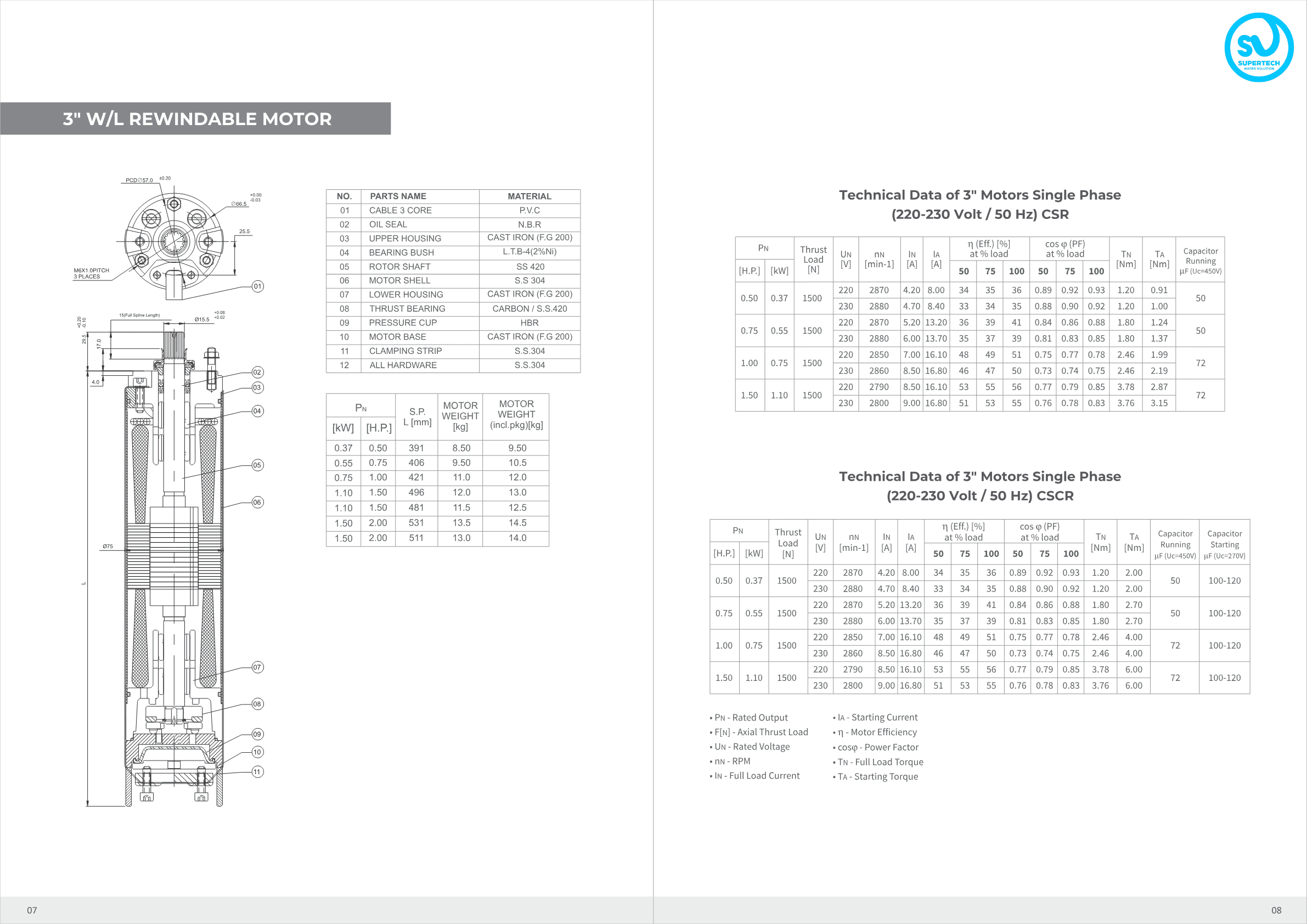

3'' water lubricated rewindable motor — technical specifications and cross-section

3'' WL motor — specs & cross-section

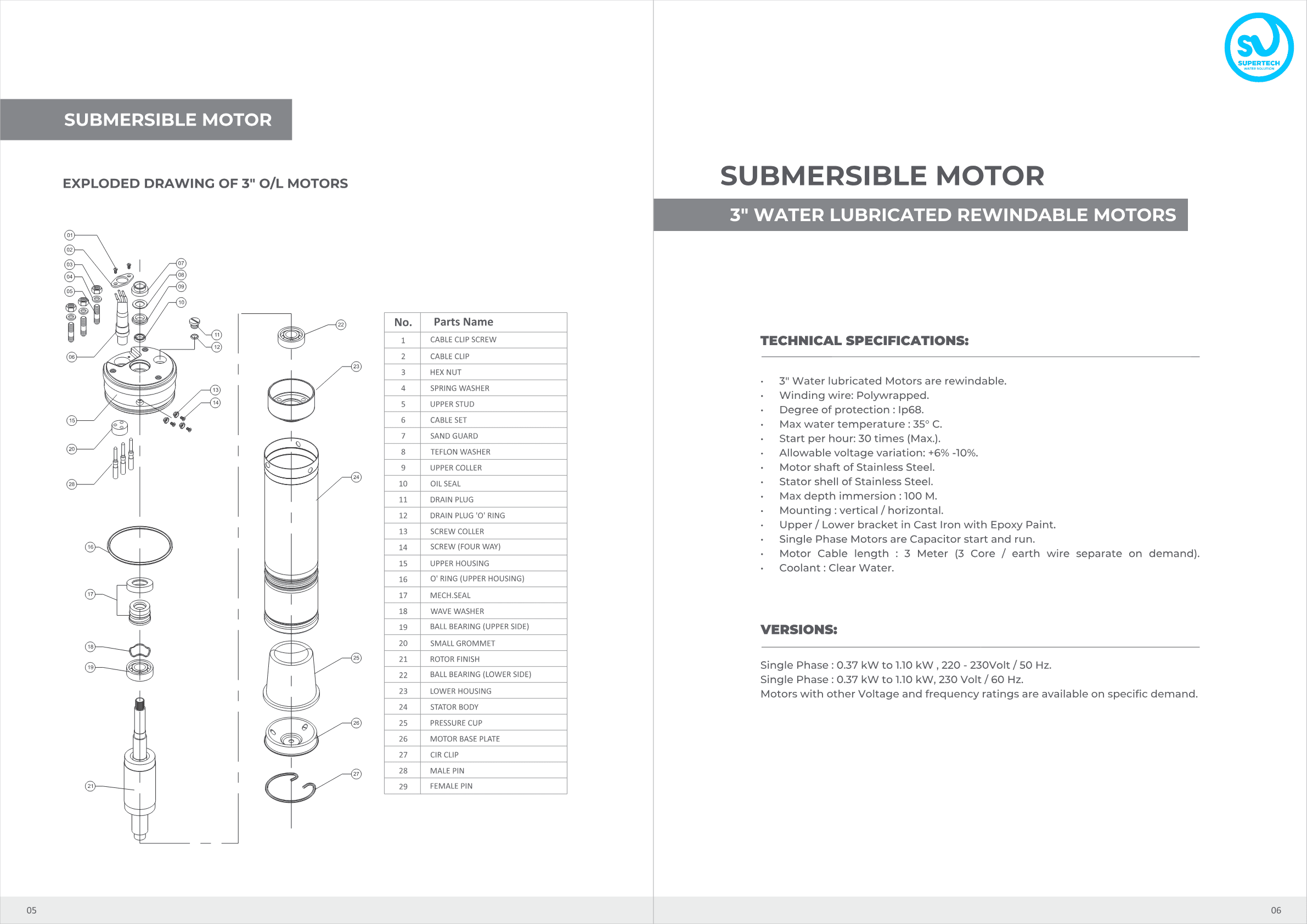

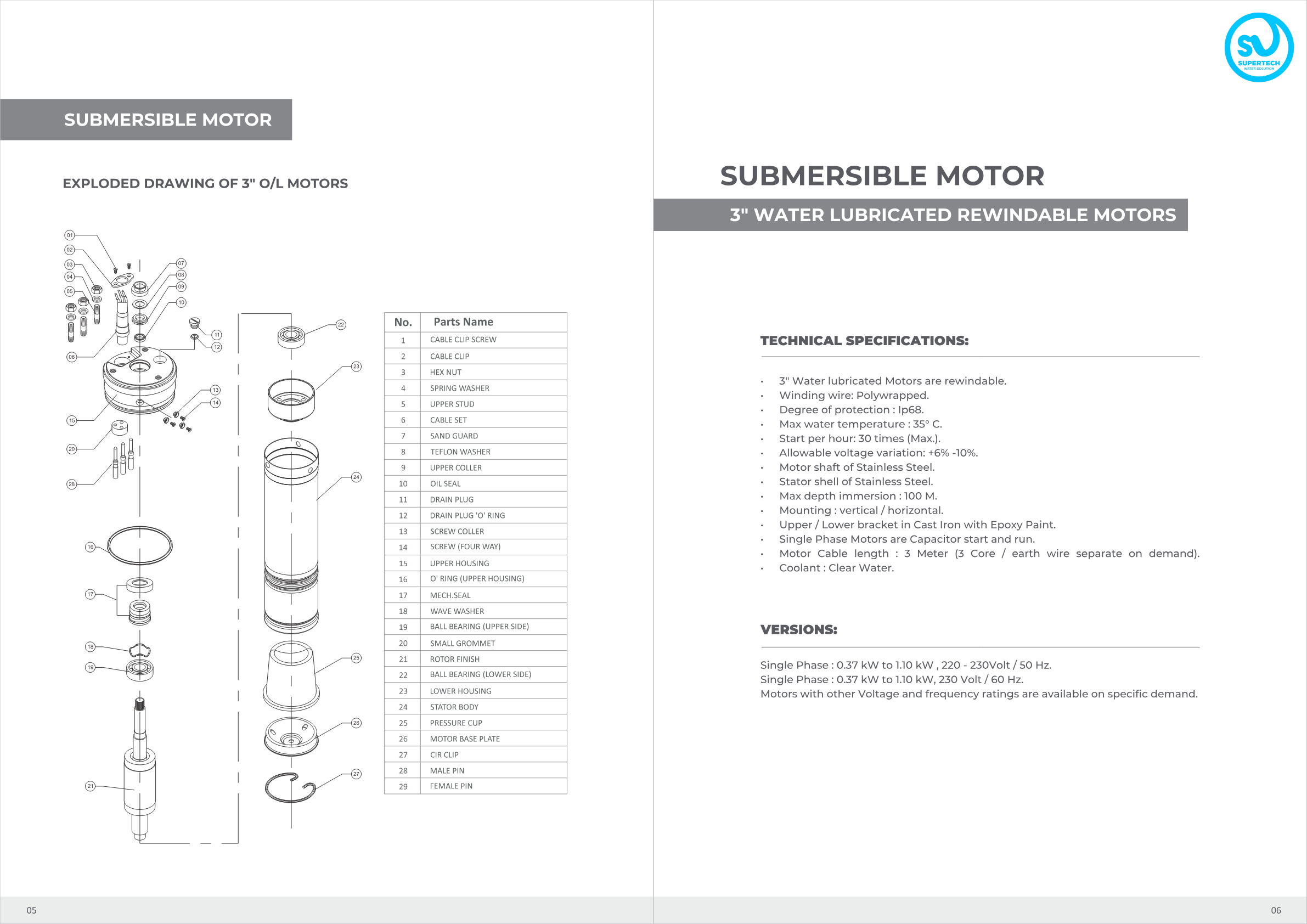

3'' water lubricated rewindable motor — exploded view and parts list

3'' WL motor — exploded view

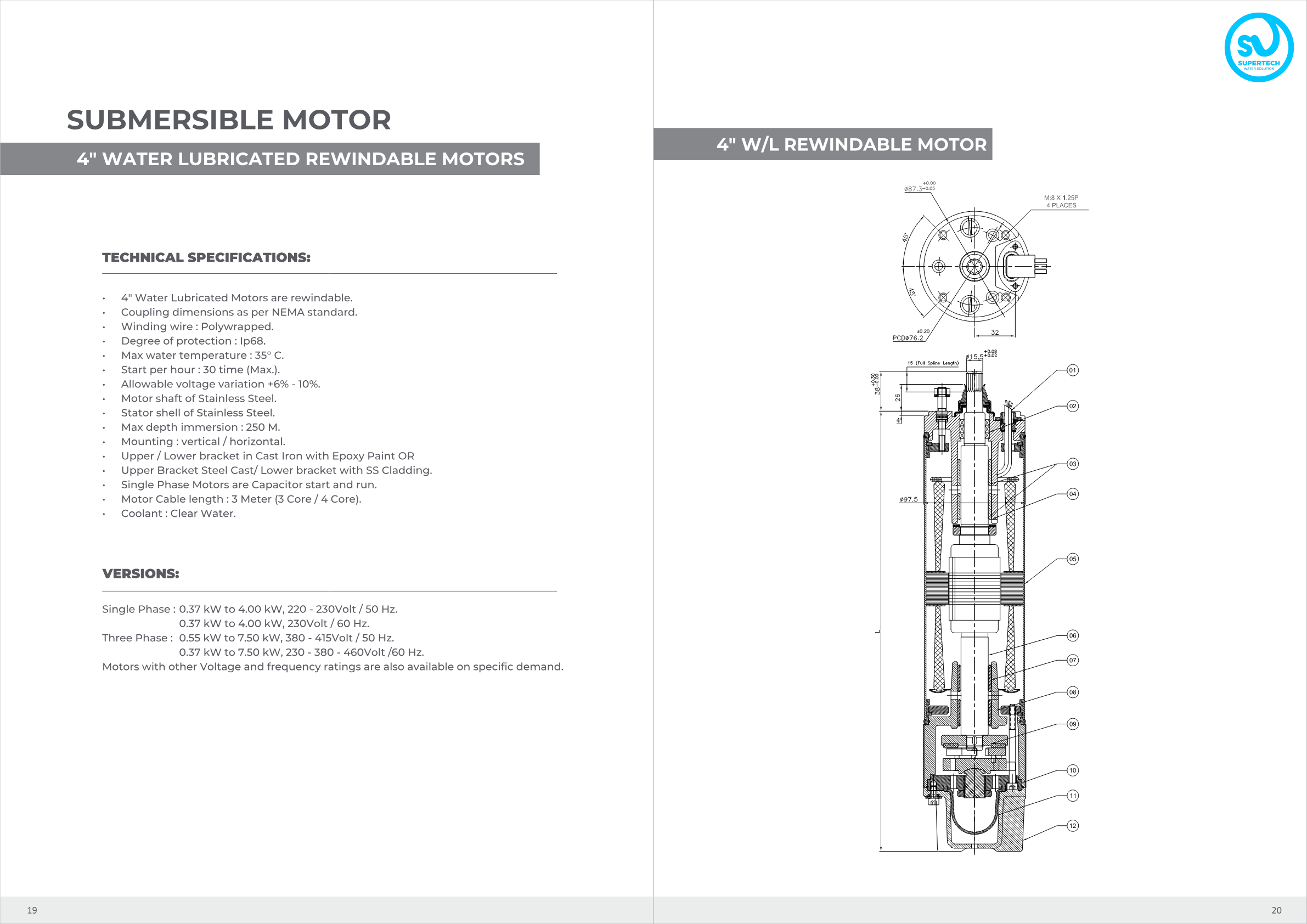

4'' water lubricated rewindable motor — technical specifications and cross-section

4'' WL motor — specs & cross-section

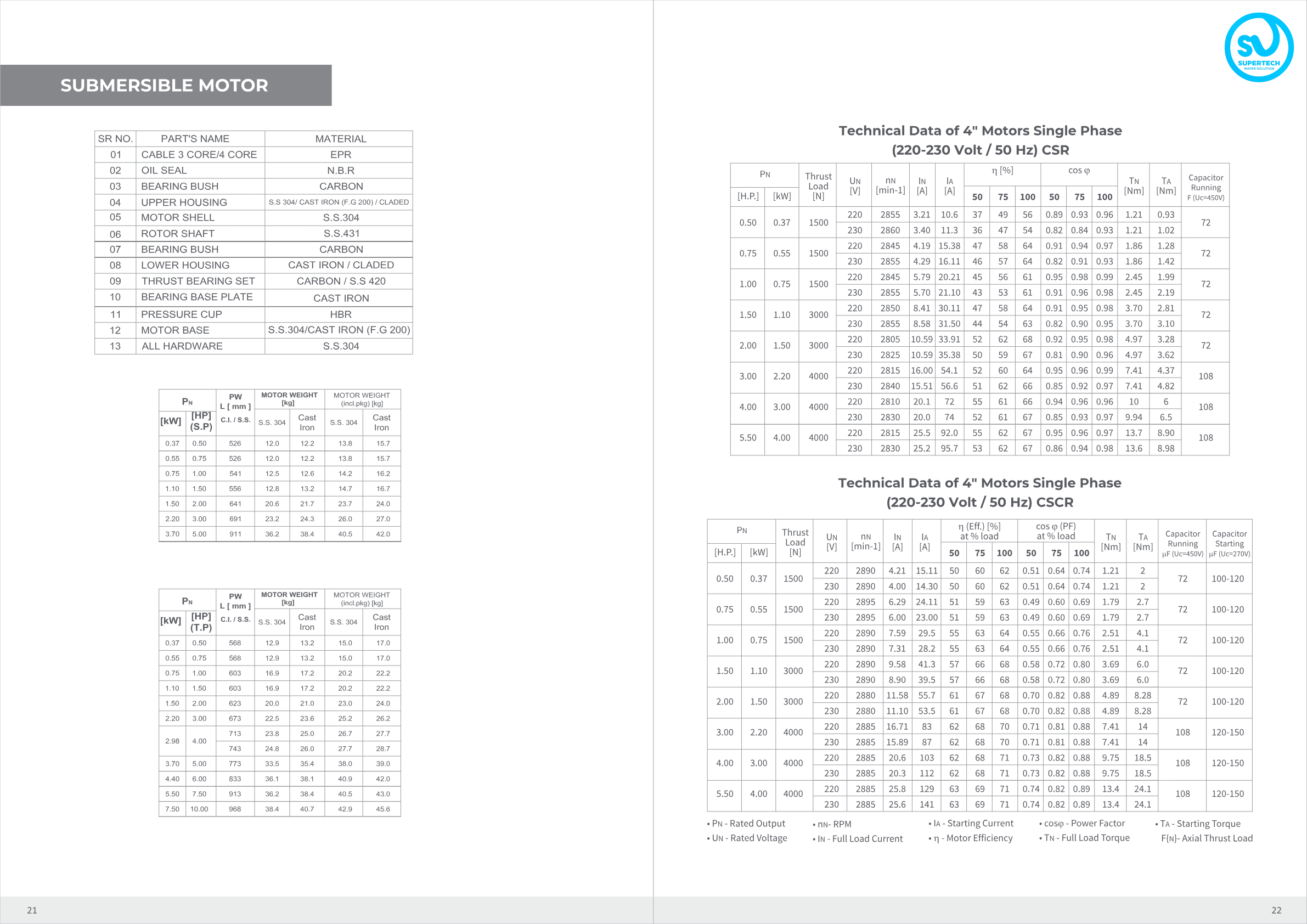

4'' water lubricated rewindable motor — single-phase 50 Hz performance tables

4'' WL — single-phase 50 Hz data

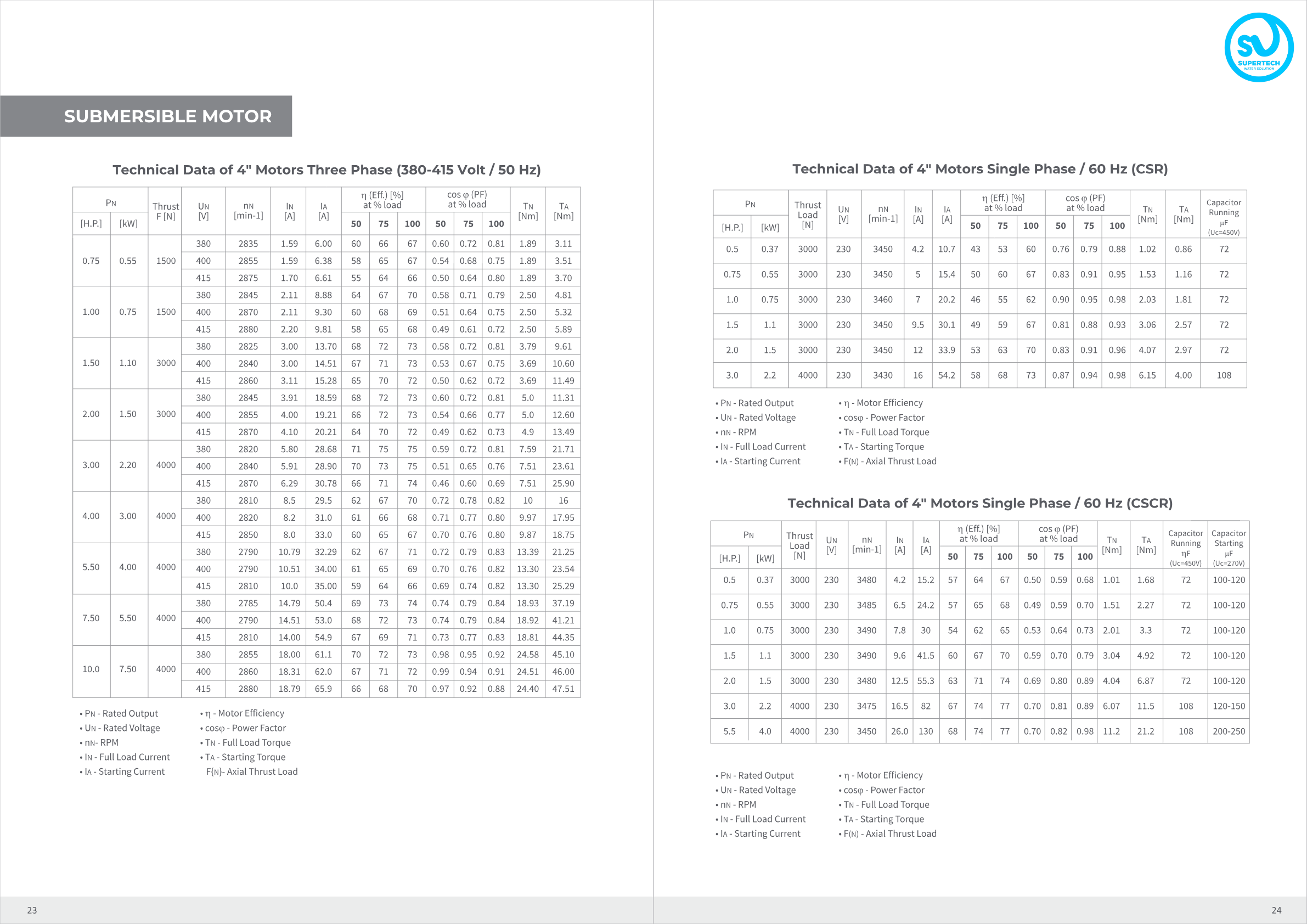

4'' water lubricated rewindable motor — three-phase 50 Hz performance tables

4'' WL — three-phase 50 Hz data

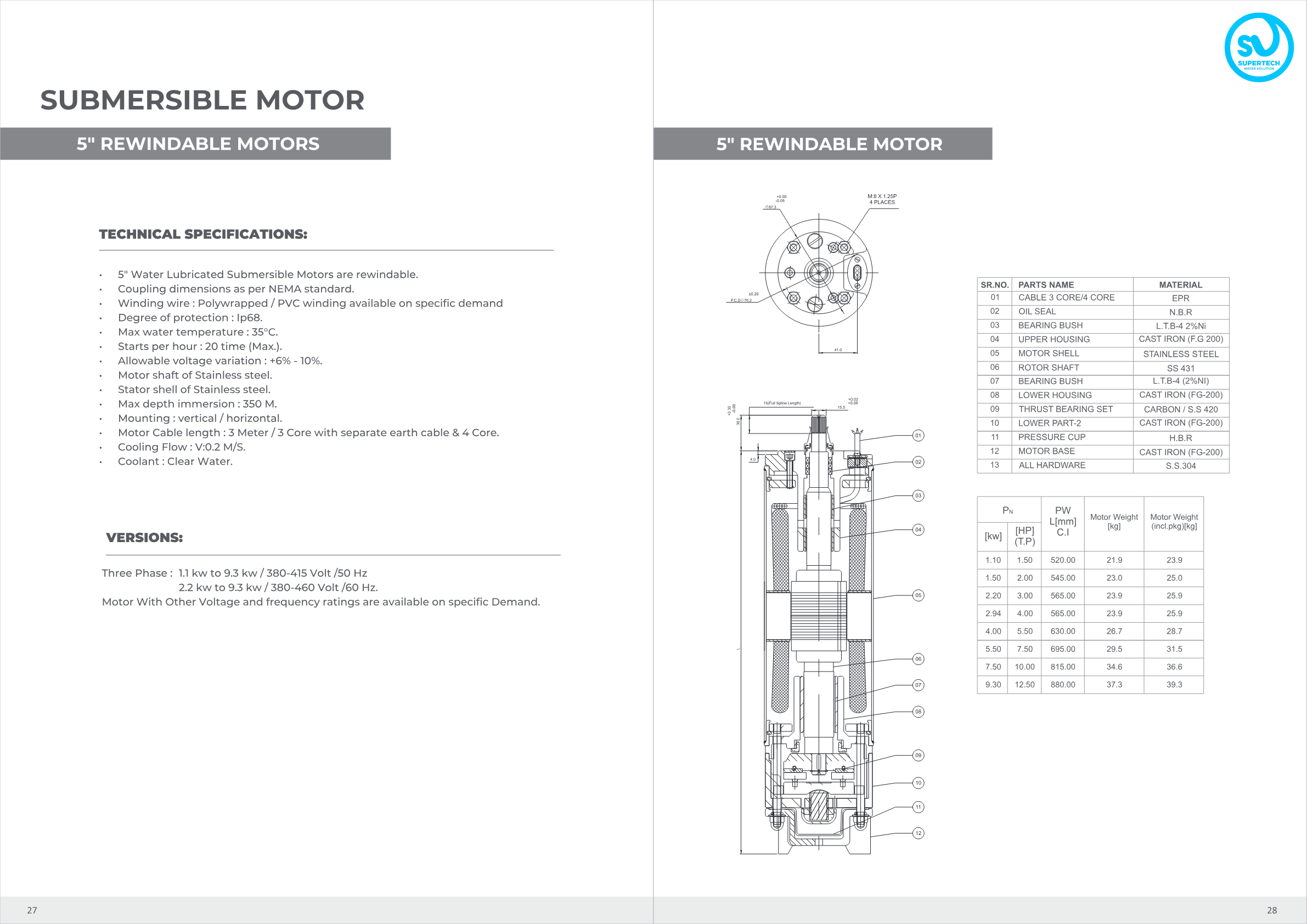

5'' water lubricated rewindable motor — technical specifications and cross-section

5'' WL motor — specs & cross-section

6'' water lubricated rewindable motor — Motor-A and Motor-B cross-sections

6'' WL — Motor-A & Motor-B drawings

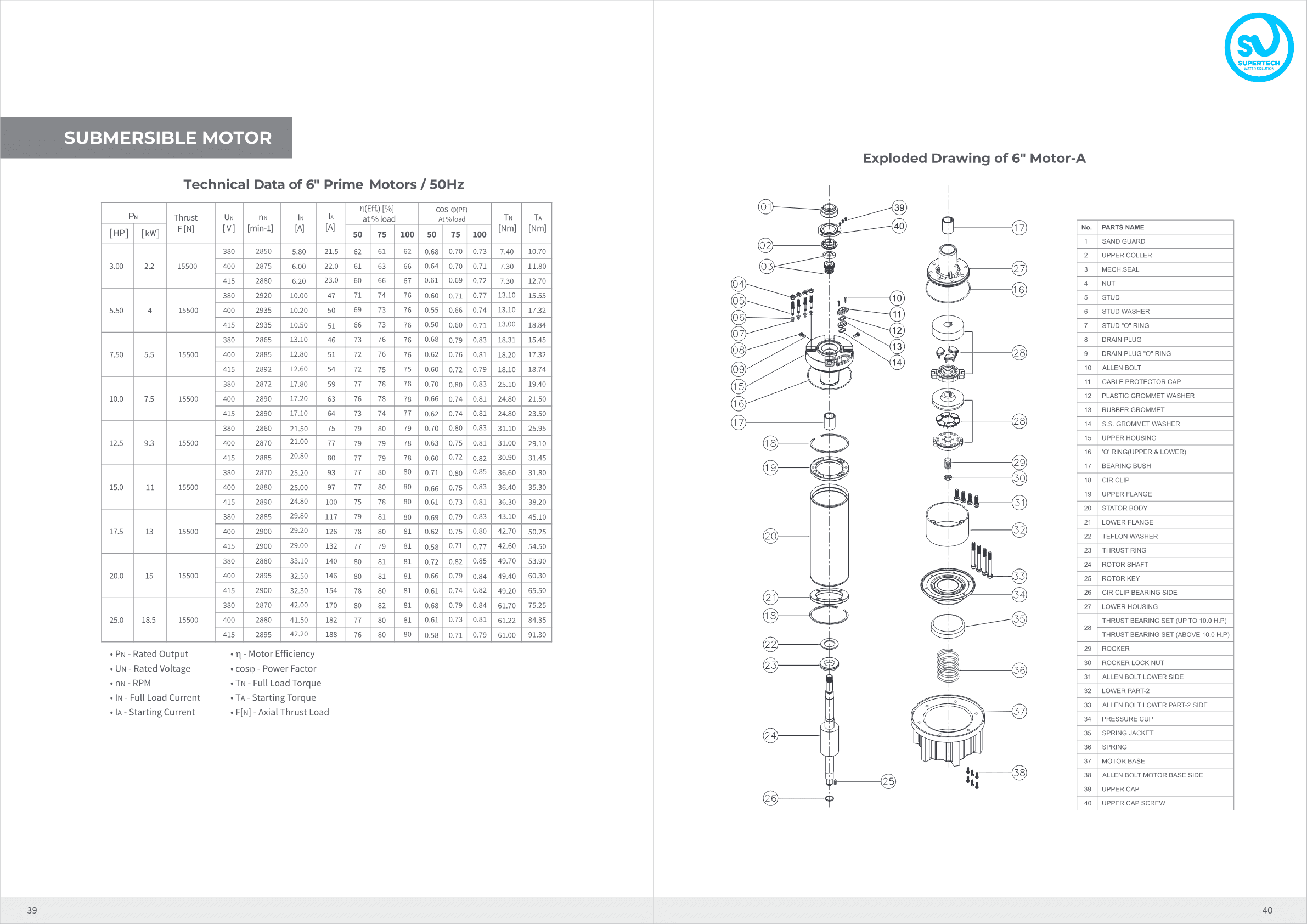

6'' Prime Motors performance data at 50 Hz with exploded view

6'' Prime — perf. data & exploded view

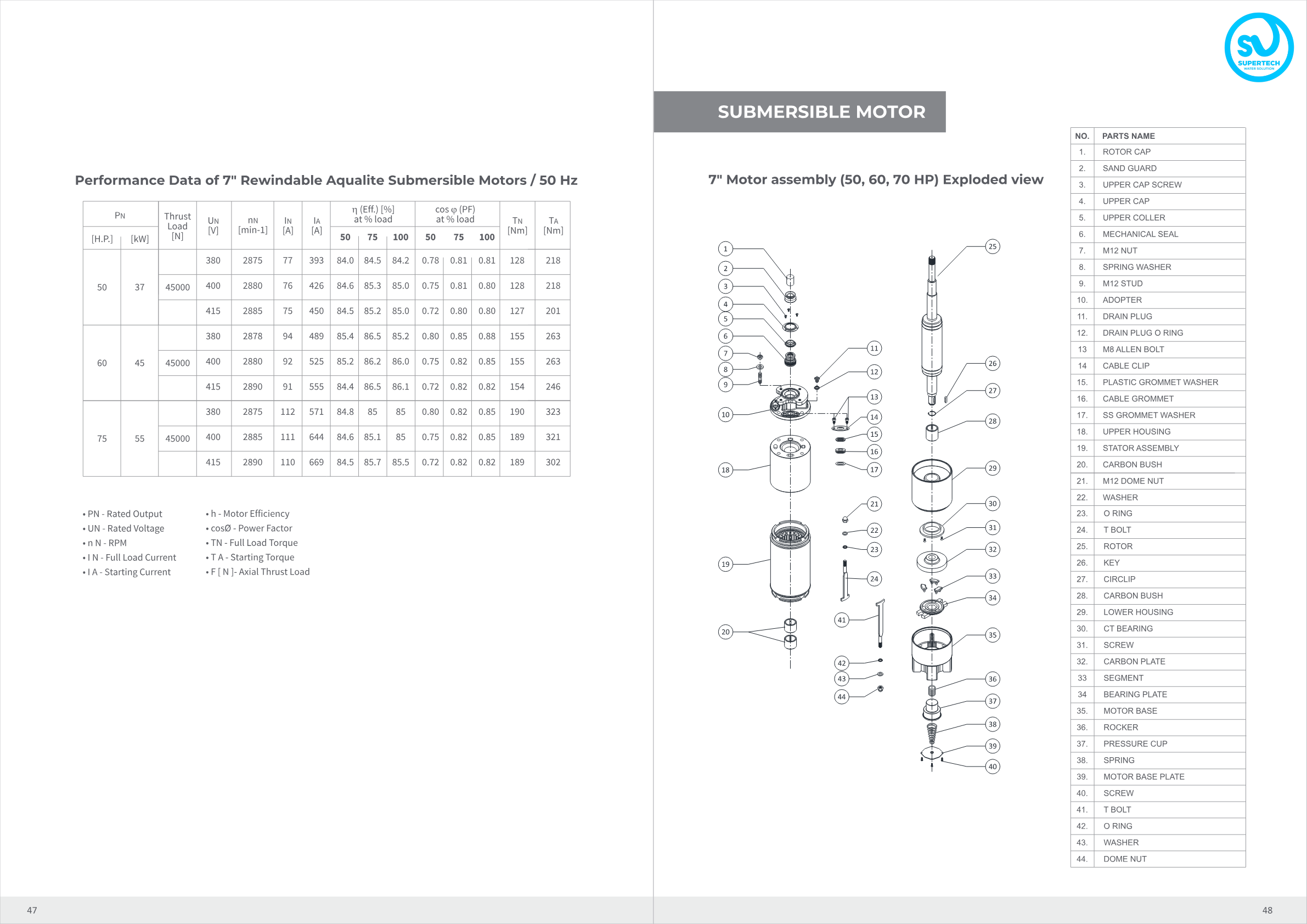

7'' Aqualite rewindable submersible motor — 50, 60, 70 HP exploded view and performance data

7'' Aqualite — 50/60/70 HP data

Characteristics

Rated Output	HP	0.5 – 100
Rated Output	kW	0.37 – 75
Frame Size (OD)	inch	3'' / 4'' / 5'' / 6'' / 7'' / 8''
Frame Size (OD)	mm	75 / 100 / 125 / 150 / 175 / 200
Voltage	1Φ 50 Hz	220 – 230 V (up to 4 kW on 4'')
	3Φ 50 Hz	380 / 400 / 415 V
	3Φ 60 Hz	230 / 380 / 460 V
Speed	50 Hz	2810 – 2900 RPM
Speed	60 Hz	3490 – 3520 RPM
Frequency	Hz	50 / 60
Coupling	—	NEMA standard splined shaft
Cooling Flow	m/s	≥ 0.2 (water across stator)
Max Water Temperature	°C	35
Max Immersion Depth	m	350
Starts per Hour	—	30 (Max.)
Voltage Tolerance	%	+6 / -10
Insulation	Class	B / F — Polywrapped winding
Protection	IP	IP68 — fully submerged
Duty	—	S1 — Continuous
Mounting	—	Vertical / Horizontal
Coolant	—	Clear borewell water
Cable	—	3 m, 3-core or 4-core (extension on demand)

Material of Construction — 3'' & 4'' Motor (Single Phase — small frame)

Cable (3-core / 4-core): EPR
Mechanical Seal: Ceramic vs. Carbon
Upper Housing: Cast Iron (FG-200) with SS cladding
Motor Shaft: Stainless Steel SS 420 / SS 431
Motor Shell: Stainless Steel SS 304
Lower Housing: Cast Iron (FG-200) with SS cladding
Bearing Bush: L.T.B-4 (2% Ni) bronze
Thrust Bearing Set: Carbon vs. SS 420
Pressure Cup: Cast Iron (FG-200)
Spring: SS 304 (spring steel)
Motor Base / Base Plate: Engineering Plastic / Cast Iron
Diaphragm / Oil seal: High Nitrile Butyl Rubber (HBR / NBR)
All Hardware: Stainless Steel SS 304

Material of Construction — 5'', 6'', 7'' & 8'' Motor (Three Phase — large frame)

Cable (3-core / 4-core): EPR / PVC
Mechanical Seal: Ceramic vs. Carbon
Adopter: Cast Iron (FG-200)
Upper Housing: Cast Iron (FG-200)
Bearing Bush: Carbon
Stator Body / Motor Shell: Stainless Steel SS 304
Rotor Shaft: Stainless Steel SS 431
Lower Housing: Cast Iron (FG-200) / Cladded
Thrust Bearing Set: Carbon / SS 420
Pressure Cup: Cast Iron (FG-200)
Spring: SS 304 (Spring Steel)
Motor Base: Cast Iron (FG-200)
T-Bolt set (Upper & Lower): Stainless Steel SS 304 with EPDM / NBR O-rings
Cable Grommet: EPDM with SS 304 washer
Diaphragm: High Nitrile Butyl Rubber (HBR)
All Hardware: Stainless Steel SS 304

Salient Features

Rewindable construction across the full 3'' – 8'' range
Coupling dimensions to NEMA standard — interchangeable with most pump bowls
Polywrapped winding wire (PVC winding on demand)
Stainless steel motor shaft (SS 420 / SS 431)
Stainless steel stator shell — non-magnetic, corrosion resistant
Cast iron upper / lower housings with epoxy paint or SS cladding
Carbon vs. SS 420 thrust bearing — water lubricated, long life
Diaphragm + pressure cup pressure compensation
Single-phase variants: capacitor start and run
Three-phase variants: DOL up to 7.5 HP, star-delta above
Class B insulation with F-class temperature rise headroom
IS:9283 / IEC 60034 standards compliant
Wide voltage tolerance (+6% / -10%)
Designed for 30 starts/hour service
Cable: 3 m factory length, 3-core or 4-core, brazed lugs, sealed gland

Applications

V3 / V4 / V5 / V6 / V8 borewell submersible pump sets
Agricultural & irrigation pumping
Domestic & municipal water supply
Industrial water supply, cooling towers & process
High-rise building pressure boosting
Solar submersible pumping (50 Hz line variant)
OEM pump-set assembly
Project installations & EPC supply

Maintain motor fully submerged in clean borewell water; refill water through filling plug before installation.

Single phase available up to ~4 kW on 4'' frame; three phase above 5.5 HP. Star-delta starting recommended above 10 HP.

Cooling flow ≥ 0.2 m/s across stator is mandatory — undersize boreholes require flow sleeves.

Motors with other voltage and frequency ratings (specially e.g. 50 Hz / 1Φ 110 V, 60 Hz / 1Φ 220 V) are available on specific demand.

Refer to /images/drawings/catalogue/motor-catalogue-*.png for the full SUPERTECH 50-60 Hz export catalogue.
