Technical data sheet

Stainless Steel Submersible Pump

Premium stainless steel submersible pump engineered for corrosion resistance in saline / coastal water, mineral-rich groundwater, and chemically aggressive applications. SS 304 or SS 316 wetted parts on request.

Characteristics

Motor Rating	HP	0.5 to 30
Motor Rating	kW	0.37 to 22
Stages	No.	3 to 40
Head Range	Metres	10 to 350
Discharge	LPM	30 to 1000
Bore size	mm	100 / 125 / 150
Bore size	inch	4 / 5 / 6
Speed	RPM	2900
Wetted parts	—	SS 304 (std) / SS 316 (on request)
Liquid temp	°C	Up to 40
Applications	Use	Coastal & saline water, Mineral-rich groundwater, RO feed, Solar pumping, Food & pharma

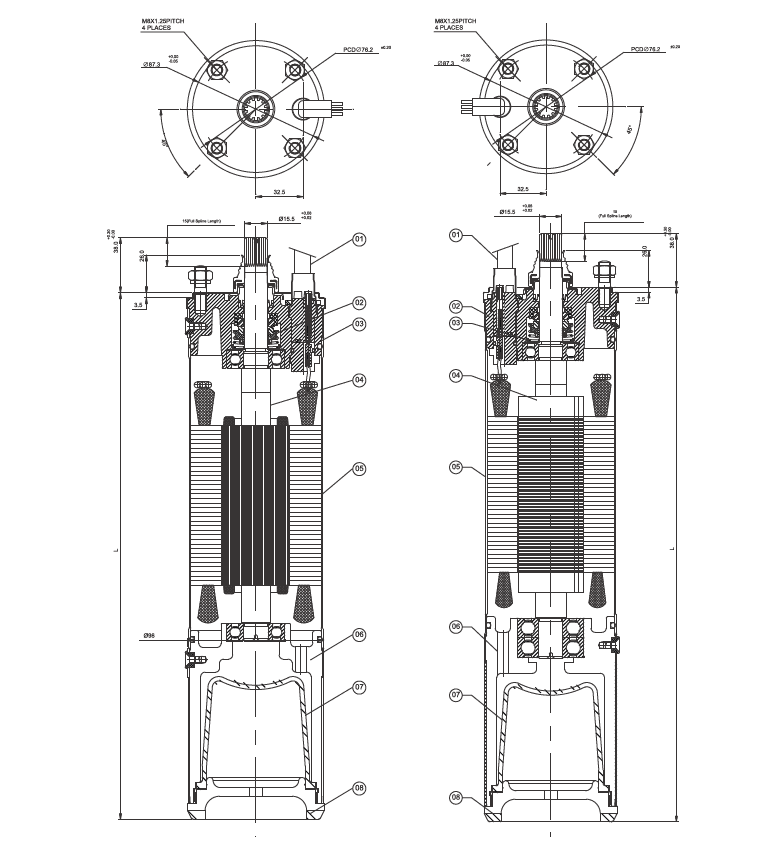

Material of Construction — Motor

Motor type: Submersible water-filled / oil-filled
Motor body: Stainless steel SS-304
Shaft: Stainless steel SS-420 / SS-431
Thrust bearing: Carbon vs. SS, water lubricated
Stator winding: F class insulated PVC, EC copper
Diaphragm: High nitrile butyl rubber

Material of Construction — Pump

Outer shell: Stainless steel SS-304 / SS-316 (stamped)
Impellers: Stainless steel SS-304 / SS-316 (stamped, dynamically balanced)
Diffusers: Stainless steel SS-304 / SS-316
Wear rings: Engineering polymer / SS — replaceable
Suction strainer: Stainless steel SS-304 perforated
Non-return valve: Stainless steel SS-304 with NBR seat
Pump shaft: Stainless steel SS-410 / SS-431
Coupling: Stainless steel SS-410

Salient Features

All wetted hydraulic parts in SS 304 (SS 316 optional)
Stamped & laser-welded construction — no castings in wetted path
Polished surface for low friction and easy cleaning
Sand-resistant impellers with floating clearance
Built-in non-return valve at discharge
Submersible motor with hermetic seal and SS body
Suitable for potable water (NSF-compliant materials available)
Lightweight design — typically 20–30% lighter than CI equivalents
Designed for water with chloride content up to 250 ppm (SS 316: higher)

Applications

Coastal & saline groundwater pumping
Mineral-rich / hard water sources
Reverse osmosis (RO) feed pumping
Solar pumping in remote areas
Food, pharma, & potable water supply
Domestic & municipal supply where corrosion is a concern
Light chemical / process water transfer (compatibility-dependent)

Specify chloride / TDS content, pH, and free CO₂ for correct grade selection (SS 304 vs SS 316 vs duplex).

For potable water duty, request NSF / WRAS material certification at RFQ stage.
