Technical data sheet
Centrifugal Monoblock Pump

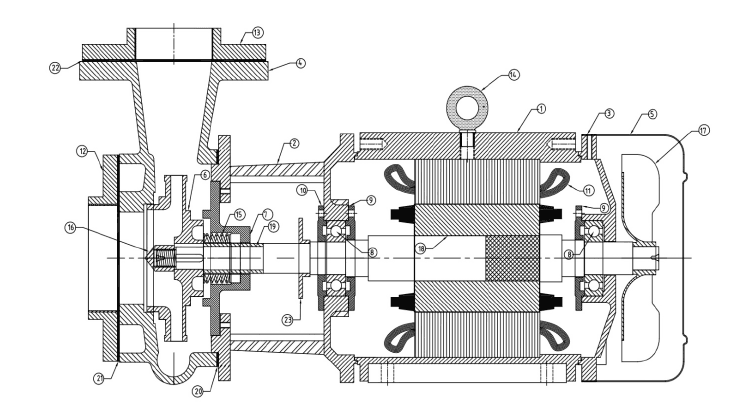

Compact integrated centrifugal monoblock pump (motor + pump on a single shaft) for surface installation. Engineered for water transfer, agricultural irrigation, domestic supply, and light industrial duty with simple installation and low maintenance.
Characteristics
| Motor Rating | HP | 0.5 to 10 |
|---|---|---|
| kW | 0.37 to 7.5 | |
| Construction | — | Single-stage centrifugal monoblock |
| Head Range | Metres | 8 to 45 |
| Discharge | LPM | 60 to 1200 |
| Outlet | mm | 25 / 32 / 40 / 50 / 65 |
| inch | 1 / 1¼ / 1½ / 2 / 2½ | |
| Speed | RPM | 2900 |
| Frequency | Hz | 50 |
| Supply | Volt | 200–240 (1Φ) / 380–415 (3Φ) |
| Suction lift | Metres | Up to 7 (at MSL, primed) |
| Applications | Use | Agriculture, Garden, Domestic, Industrial transfer, Light commercial |
Material of Construction — Motor
- Stator: Vacuum impregnated, F class insulation
- Rotor: Aluminium pressure die-cast
- Motor frame: Cast iron / aluminium alloy
- Shaft: Stainless steel SS-410 / EN-8 carbon steel
- Bearings: Sealed roller ball bearings, deep groove
- Winding: EC grade copper, dual-coat F class
- Thermal protection: Built-in overload protector (single-phase)
- Cooling: Fan-cooled external (TEFC)
Material of Construction — Pump
- Pump casing: Cast iron, CED coated
- Impeller: Cast iron / brass / noryl, dynamically balanced
- Mechanical seal: Carbon vs. ceramic, oil-resistant elastomer
- Suction & delivery ports: Threaded BSP, cast iron
- Shaft sleeve: Stainless steel SS-410 (where fitted)
- Fasteners: Stainless steel SS-304
Salient Features
- Single-shaft monoblock design — no alignment required
- Compact footprint for easy installation
- Cast iron body with CED coating for corrosion resistance
- Dynamically balanced impeller for low vibration
- Mechanical seal with carbon vs. ceramic faces
- Class F insulation with thermal overload protection
- Wide voltage band operation
- Available in single-phase and three-phase variants
- Self-priming variants available on request
Applications
- Agricultural water transfer
- Domestic water supply
- Garden & lawn irrigation
- Industrial fluid transfer
- Light commercial water supply
- Water tank filling
- HVAC circulation
Pump must be primed before starting; install foot valve on suction line.
Maintain suction lift within rated limits to avoid cavitation.
