Automation Panels (PLC / SCADA)
PLC / SCADA automation panels for pumping stations and industrial control.
Technical data sheet

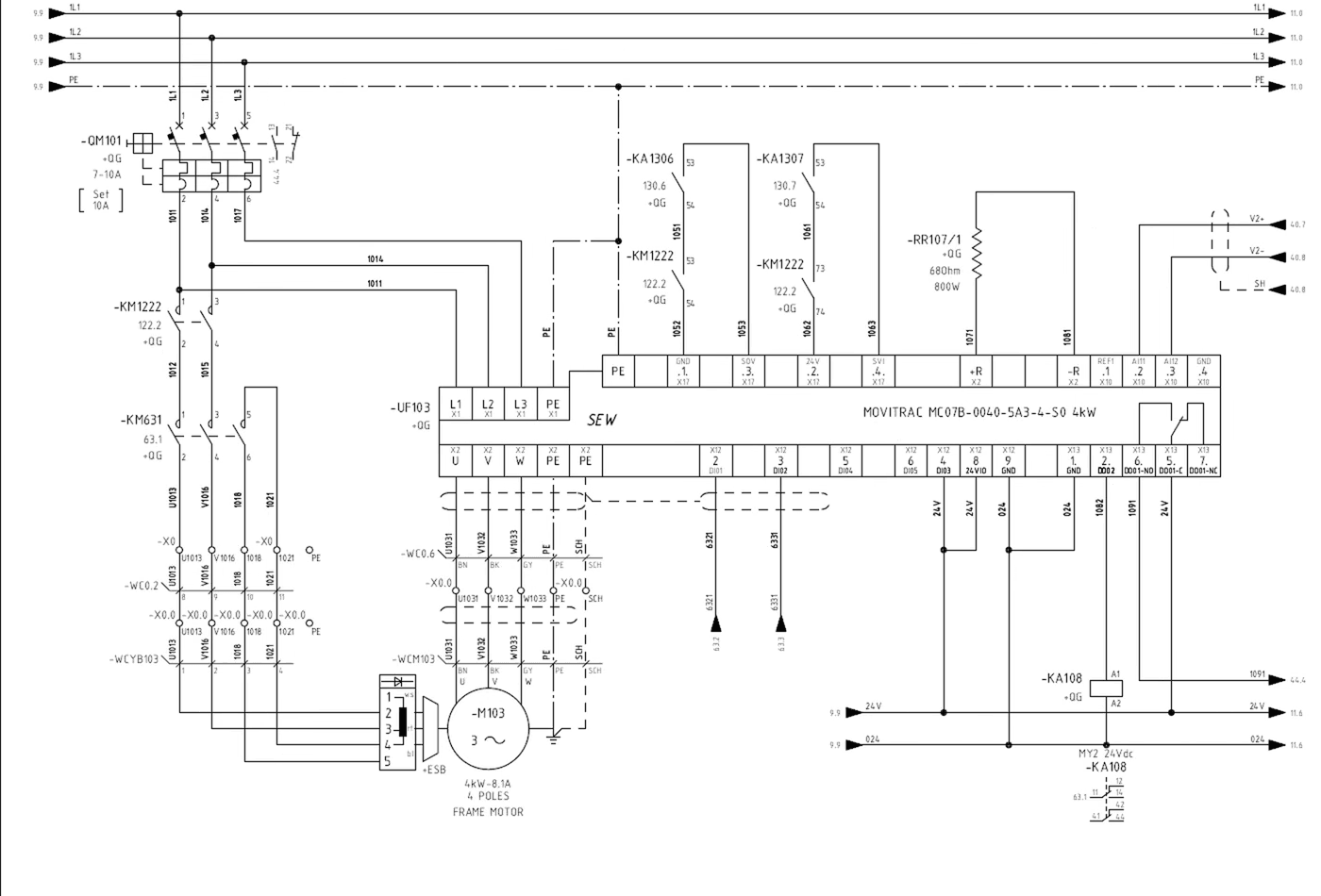

PLC-Based Automation Panel
PLC-based automation panel for pumping stations, water treatment plants, and industrial processes. Programmable logic, HMI display, SCADA-ready signals, and integrated motor control for fully automatic operation.
Characteristics
| PLC | — | Siemens S7-1200 / Allen-Bradley Micro 850 / Mitsubishi FX5U / Delta DVP |
|---|---|---|
| I/O capability | — | Digital 8–256 / Analogue 4–32 (expandable) |
| HMI | — | 7" / 10" / 15" colour touchscreen |
| Communication | — | Ethernet / Modbus RTU / Profinet / Profibus / OPC-UA |
| Motor control | — | Direct contactor / Soft-starter / VFD |
| Remote access | — | GSM / GPRS / IoT (optional) |
| Pumps controlled | No. | 1 to 8 (typical), expandable |
| Enclosure | — | Powder-coated MS / SS 304, IP54 / IP65 |
| Applications | Use | Pumping stations, WTP, STP, ETP, Building automation, Industrial process |
Material of Construction — Automation & control
- PLC: Siemens / Allen-Bradley / Mitsubishi / Delta
- HMI: 7" / 10" / 15" colour touchscreen, IP65 front
- I/O modules: DI / DO / AI / AO expansion modules (plug-in)
- Pressure transmitter: 4–20 mA, 0–10/16/25 bar (process-dependent)
- Flow meter input: Pulse / 4–20 mA from electromagnetic / ultrasonic flow meter
- Level sensor: Ultrasonic / hydrostatic / float (process-dependent)
- VFDs: Per pump (when speed control required)
- Communication modules: Ethernet / Modbus / Profinet / Profibus
Material of Construction — Power & enclosure
- Incoming protection: MCCB with electronic trip, ICU 25–50 kA
- Motor contactors: AC-3 duty, sized to motor rating
- Overload relays: Thermal / electronic, with single-phasing protection
- Control transformer: 230 V / 24 V DC SMPS for PLC supply
- UPS / battery backup: PLC + HMI on UPS (optional)
- Enclosure: Powder-coated MS / SS 304, IP54 / IP65
- Cooling: Natural / fan-cooled / air-conditioner (large enclosures)
Salient Features
- Programmable Logic Controller (PLC) — application-specific logic
- Colour HMI touchscreen — alarms, trends, set-points, recipes
- Cascade duty-standby with auto-rotation of pumps
- Pressure / flow / level transmitter inputs (4–20 mA)
- VFD speed control with PID loop
- Soft-start / soft-stop sequencing
- Data logging (USB / SD card / cloud)
- Email / SMS / app alerts on alarm
- Modbus RTU / Ethernet for SCADA integration
- Remote access via VPN / IoT gateway
Applications
- Pumping stations with multi-pump control
- Water treatment plants (WTP)
- Sewage / effluent treatment plants (STP / ETP)
- Pressure booster systems with cascade control
- Building automation (BMS) integration
- Industrial process automation
- Solar pumping with remote monitoring
- Municipal water distribution
Specify number of pumps, control strategy (cascade / lead-lag / pressure / level), and SCADA protocol at RFQ stage.
For mission-critical applications, recommend redundant PLC + UPS power for control circuit.
