Oil Filled Motors
Oil-lubricated rewindable submersible motors (3'' / 4'', 0.5 – 7.5 HP).
Technical data sheet

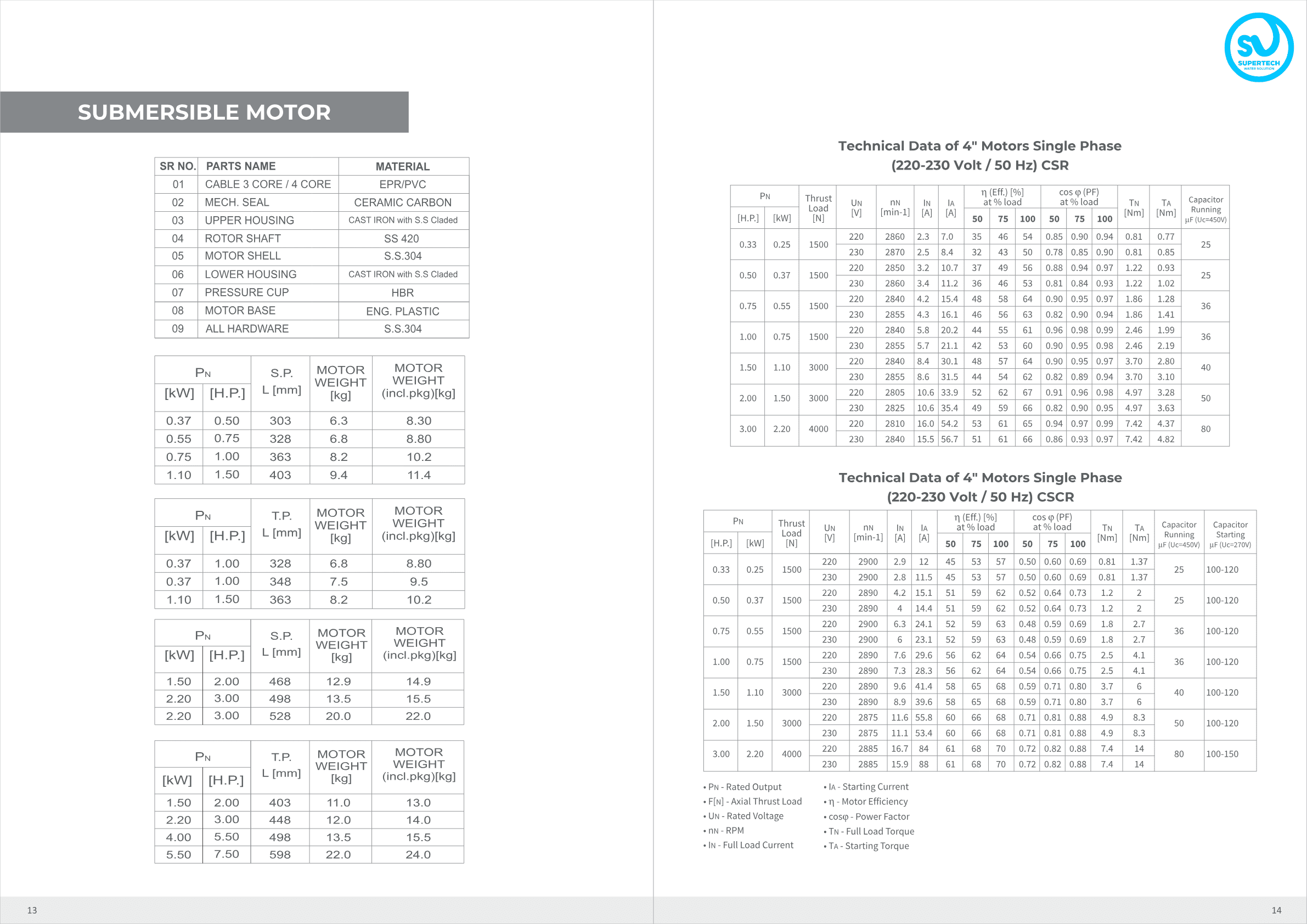

Oil Filled (Oil Lubricated) Submersible Motor (3'' / 4'')
Rewindable Oil Lubricated (OL) submersible motor manufactured to IS:9283 / IEC 60034 in 3'' and 4'' frames. Dual-coat enamelled copper winding immersed in food-grade non-toxic die-electric oil for superior heat dissipation, suitable for vertical, horizontal and inclined installation. Single phase up to 2.20 kW (3 HP) and three phase up to 5.5 kW (7.5 HP) on 4'' frame.
Characteristics
| Rated Output | HP | 0.5 – 7.5 |
|---|---|---|
| kW | 0.37 – 5.5 | |
| Frame Size (OD) | inch | 3'' / 4'' |
| mm | 75 / 100 | |
| Voltage | 1Φ 50 Hz | 220 – 230 V |
| 1Φ 60 Hz | 230 V | |
| 3Φ 50 Hz | 380 / 400 / 415 V | |
| 3Φ 60 Hz | 230 / 380 / 460 V | |
| Speed | 50 Hz | 2840 – 2900 RPM |
| 60 Hz | 3450 – 3520 RPM | |
| Frequency | Hz | 50 / 60 |
| Coupling | — | NEMA standard splined shaft |
| Max Oil Temperature | °C | 35 |
| Max Immersion Depth | m | 100 (3'') / 250 (4'') |
| Starts per Hour | — | 30 (Max.) |
| Voltage Tolerance | % | +6 / -10 |
| Insulation | Class | B — Dual-coat enamelled winding |
| Protection | IP | IP58 |
| Duty | — | S1 — Continuous, high restart capability |
| Mounting | — | Vertical / Horizontal / Inclined |
| Coolant | — | Die-electric non-toxic oil (food-grade compatible) |
| Cable | — | 3 m, 3-core or 4-core (extension on demand) |

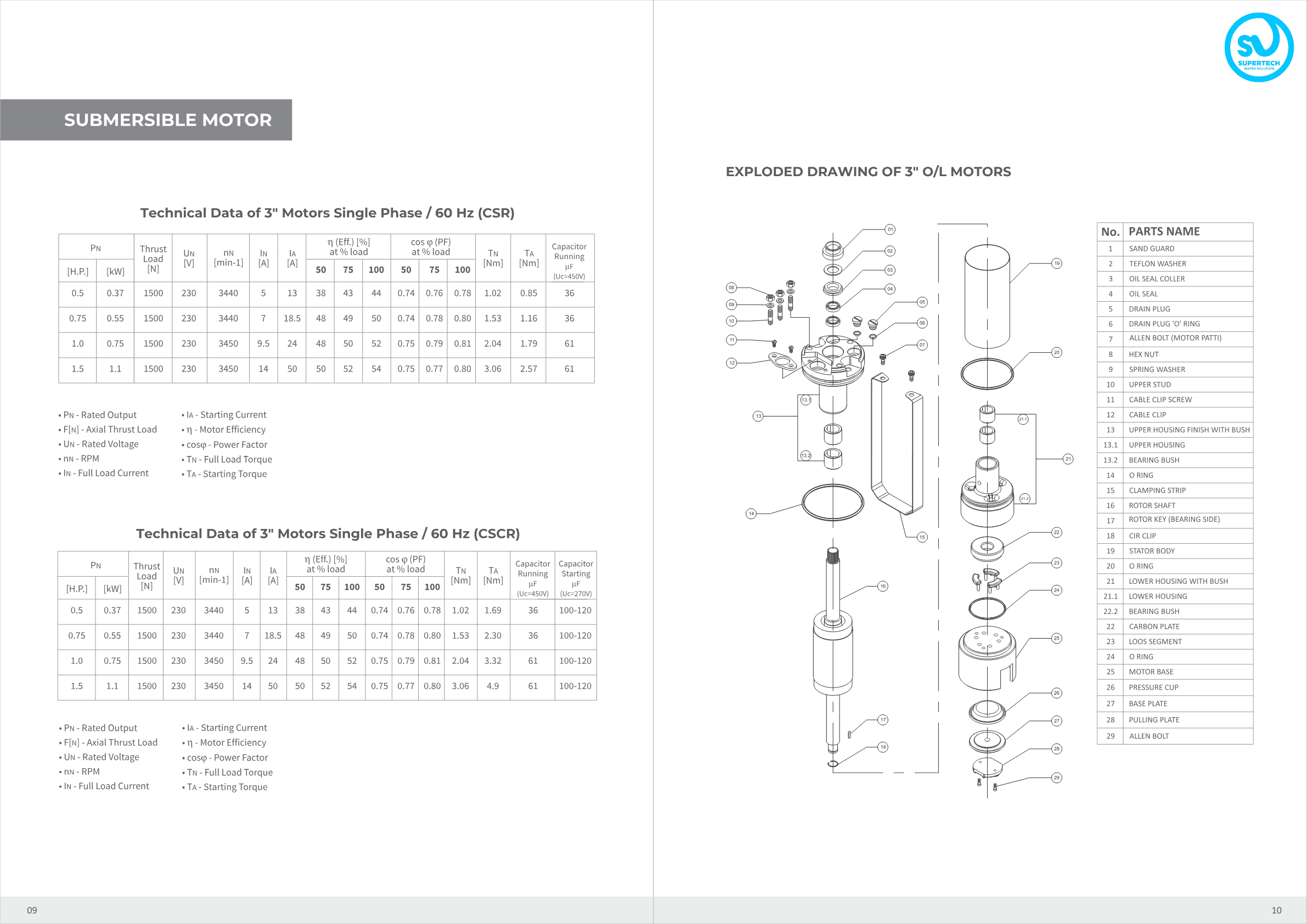

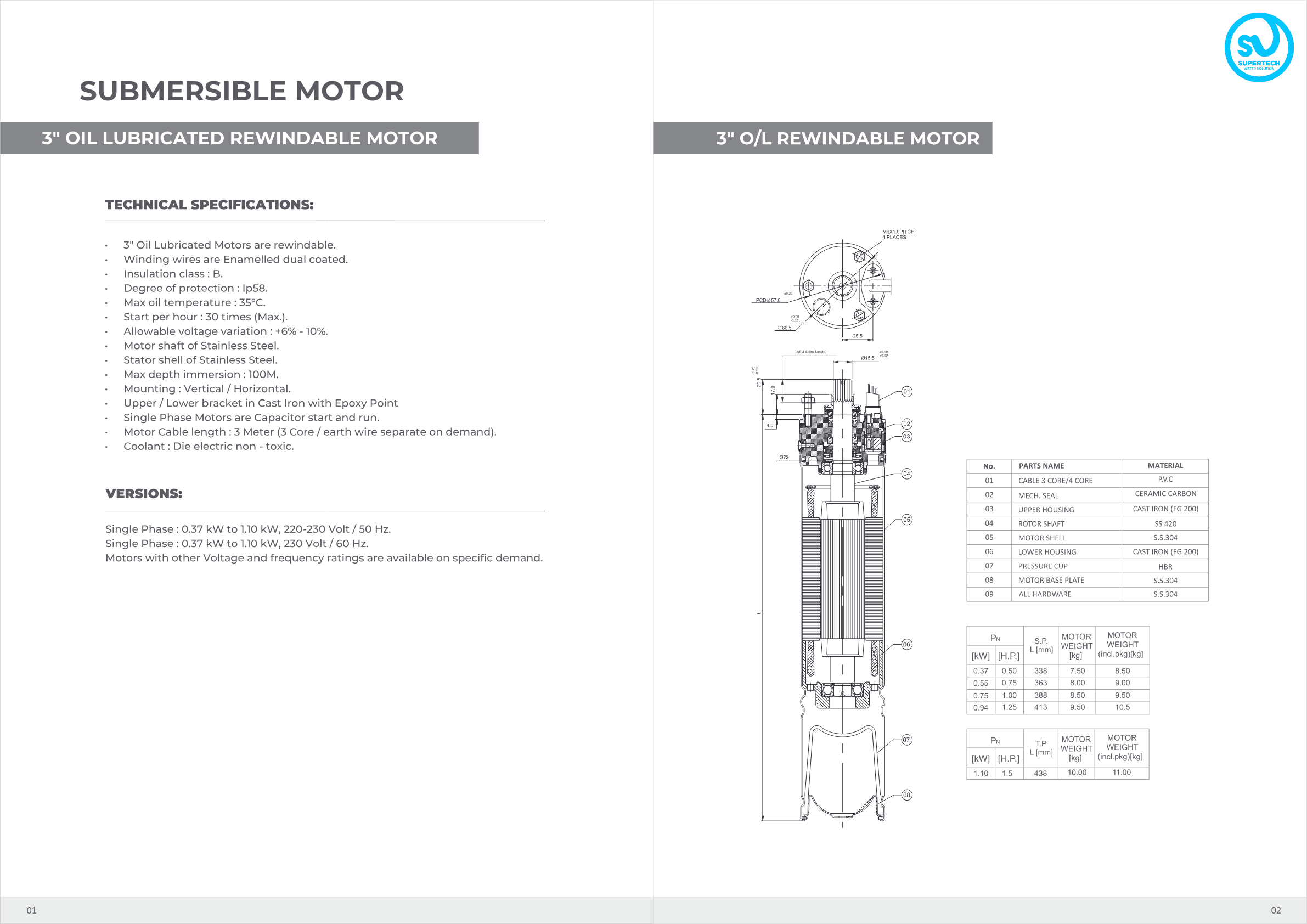

Material of Construction — 3'' Oil Lubricated Motor
- Cable (3-core / 4-core): PVC / EPR
- Mechanical Seal: Ceramic vs. Carbon
- Upper Housing: Cast Iron (FG-200) with epoxy paint
- Rotor Shaft: Stainless Steel SS 420
- Motor Shell: Stainless Steel SS 304
- Lower Housing: Cast Iron (FG-200) with epoxy paint
- Pressure Cup: High Nitrile Butyl Rubber (HBR)
- Motor Base Plate: Stainless Steel SS 304
- Diaphragm / Oil Seal: Nitrile Butyl Rubber (NBR)
- All Hardware: Stainless Steel SS 304

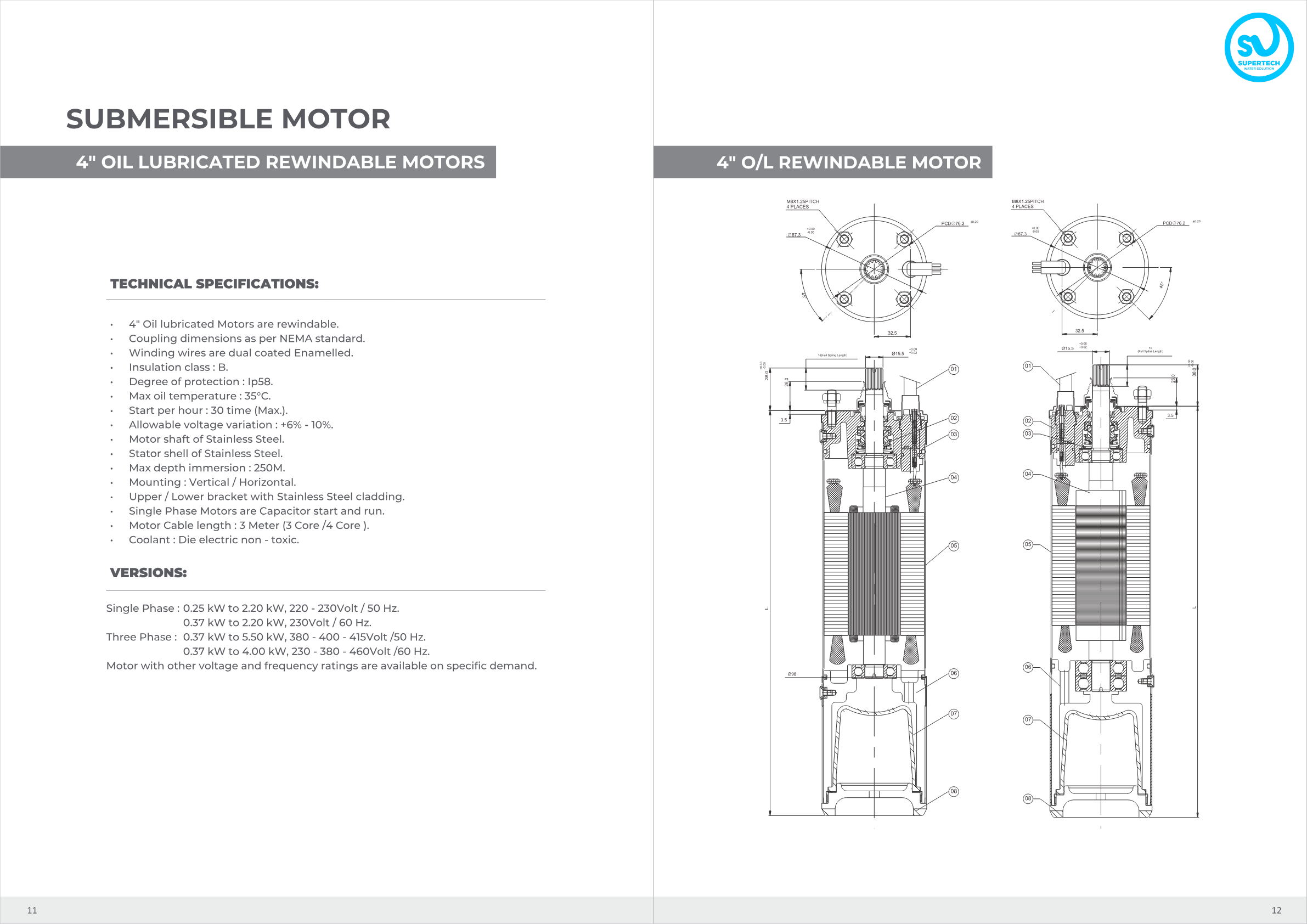

Material of Construction — 4'' Oil Lubricated Motor
- Cable (3-core / 4-core): EPR / PVC
- Mechanical Seal: Ceramic vs. Carbon
- Upper Housing: Cast Iron (FG-200) with SS cladding
- Rotor Shaft: Stainless Steel SS 420
- Motor Shell: Stainless Steel SS 304
- Lower Housing: Cast Iron (FG-200) with SS cladding
- Pressure Cup: High Nitrile Butyl Rubber (HBR)
- Motor Base: Engineering Plastic / Cast Iron
- Thrust Bearing Set: Carbon / SS 420
- Diaphragm / Oil Seal: Nitrile Butyl Rubber (NBR)
- All Hardware: Stainless Steel SS 304
Salient Features
- Oil-bath lubrication — superior heat dissipation, low winding temperature
- Suitable for any installation orientation (vertical / horizontal / inclined)
- Higher restart frequency capability than water-filled equivalents
- Dual-coat enamelled copper winding for slim profile and high efficiency
- Hermetically sealed — oil contained by mechanical seal + epoxy paint
- Stainless steel motor shaft (SS 420) and SS 304 motor shell — corrosion resistant
- Cast iron upper / lower brackets with epoxy paint
- Single-phase variants: capacitor start and run
- Three-phase variants: DOL up to 5 HP, star-delta above
- Class B insulation, IP58 protection
- IS:9283 / IEC 60034 standards compliant
- Wide voltage tolerance (+6% / -10%)
- Designed for 30 starts/hour service
- Coolant: die-electric non-toxic oil — safe for drinking water borehole environments
Applications
- V3 / V4 borewell submersible pump sets
- Horizontal & inclined installation duty (lakes, ponds, tanks)
- Solar submersible pumping (small / medium farms)
- Locations with frequent starts (≤30/hour)
- Domestic & low-head agricultural pumping
- OEM pump-set assembly
- Project installations & EPC supply
Use only the supplied die-electric non-toxic oil. Check oil level before installation and after major service.
For drinking water duty, food-grade white mineral oil is mandatory — confirm with our technical team before ordering.
Motors with other voltage and frequency ratings (e.g. 110 V / 60 Hz single phase) are available on specific demand.

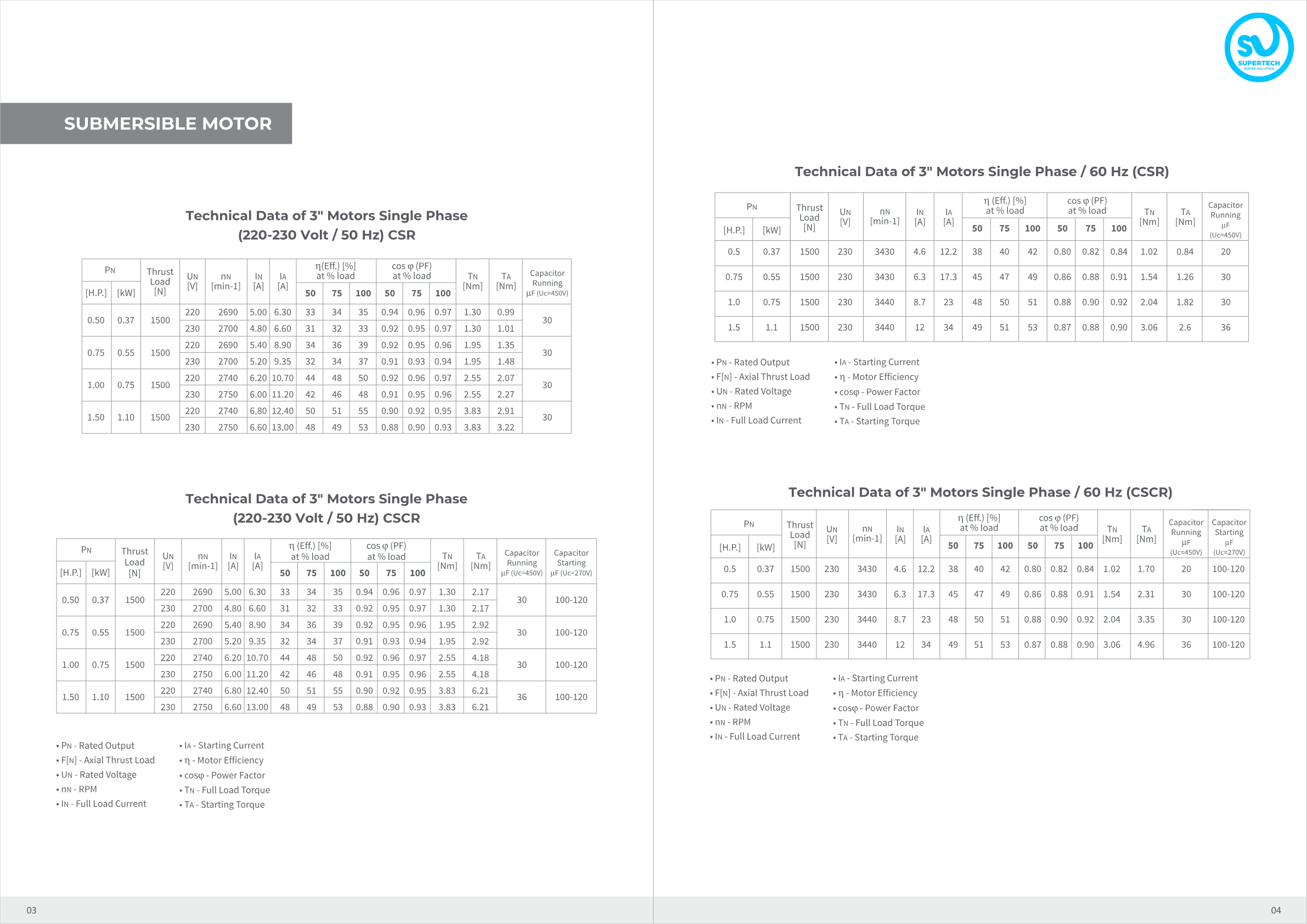

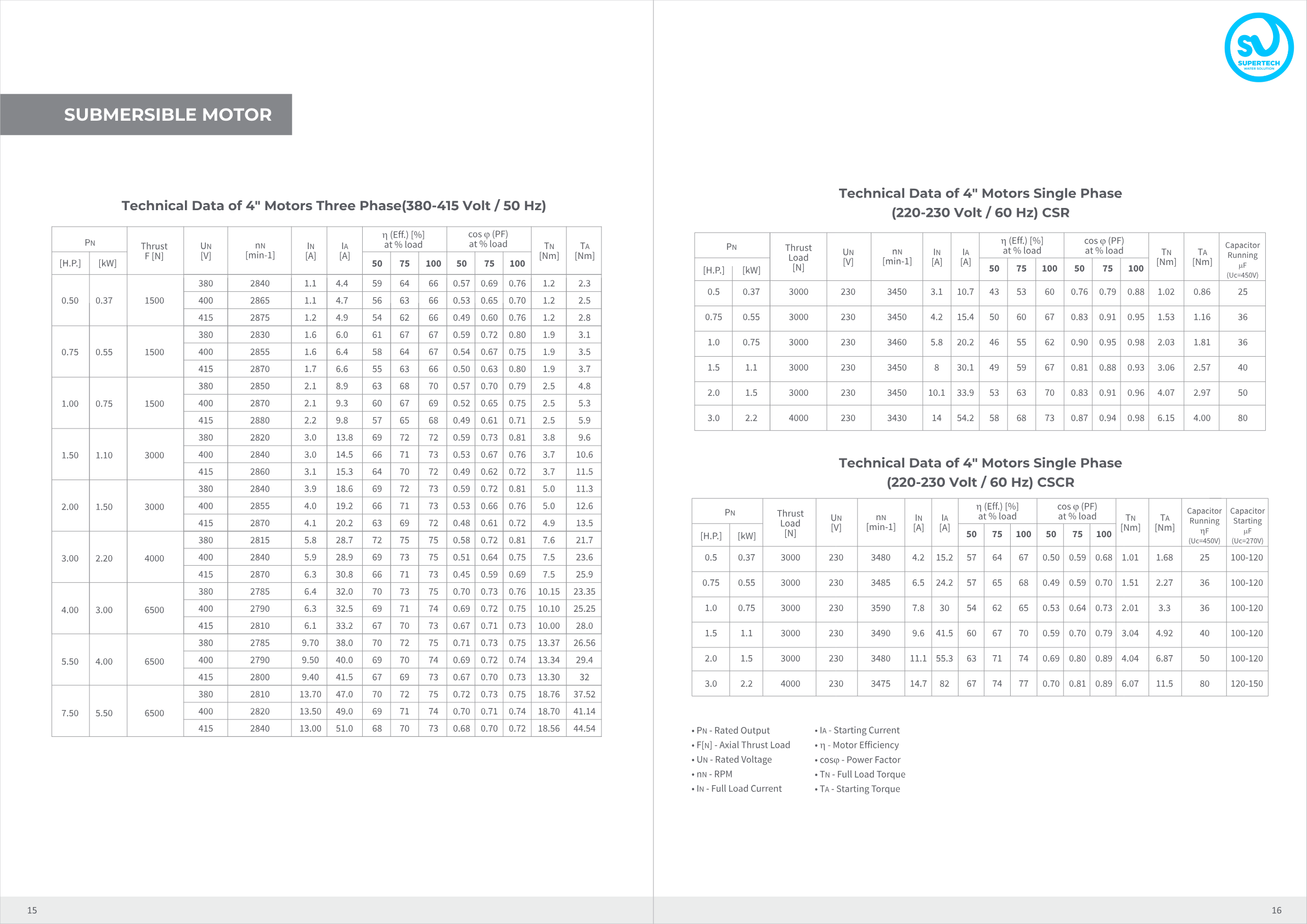

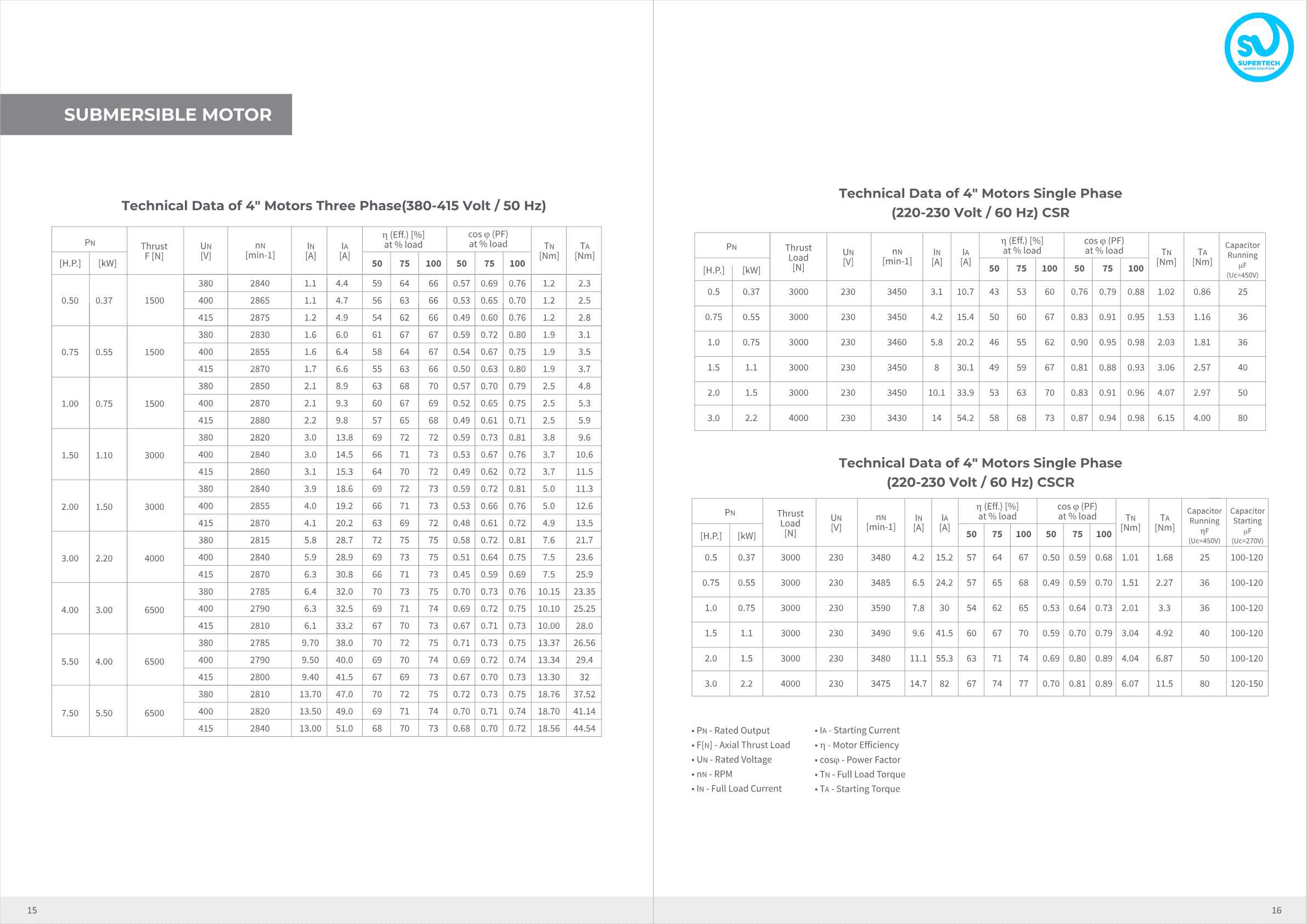

Refer to /images/drawings/catalogue/motor-catalogue-*.png for the full SUPERTECH 50-60 Hz export catalogue.
