Vertical Pumps
Vertical inline multistage pumps for tight footprints and pressure boosting.
Technical data sheet
Vertical Inline Multi-Stage Pump
Vertical inline multi-stage centrifugal pump engineered for compact footprint, high efficiency, and easy maintenance in pressure boosting, RO/water treatment, HVAC, and industrial process duty.
Characteristics
| Motor Rating | HP | 0.5 to 60 |
|---|---|---|
| kW | 0.37 to 45 | |
| Stages | No. | 1 to 22 |
| Head Range | Metres | 10 to 250 |
| Discharge | LPM | 30 to 1500 |
| Flange Size | mm | 25 / 32 / 40 / 50 / 65 / 80 / 100 |
| inch | 1 / 1¼ / 1½ / 2 / 2½ / 3 / 4 | |
| Speed | RPM | 2900 |
| Frequency | Hz | 50 |
| Liquid temp | °C | -15 to +120 (variant dependent) |
| Construction | — | Vertical inline, stamped SS hydraulic |
| Applications | Use | Pressure boosting, RO / WTP, HVAC, Boiler feed, Industrial process, Sprinkler, Fire jockey |

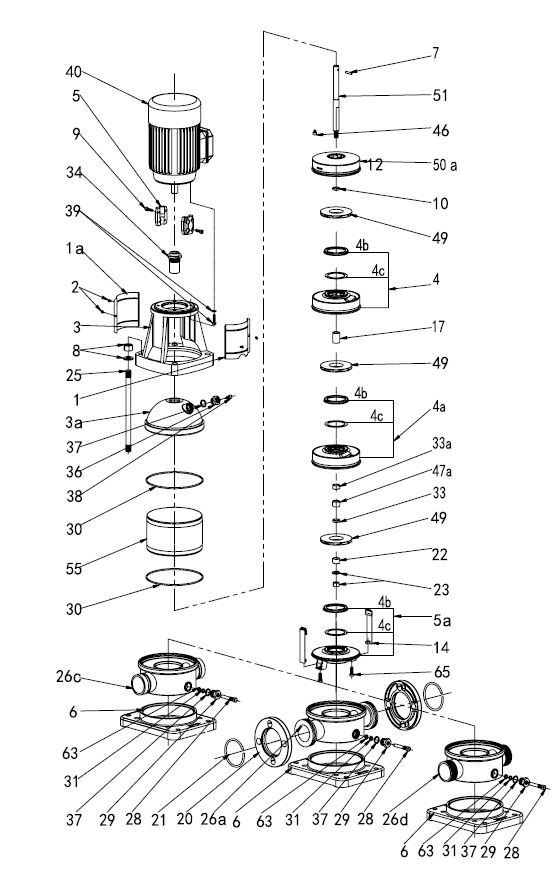

Material of Construction — Hydraulic
- Casing: Stainless steel SS 304 / SS 316 stamped
- Impellers: Stainless steel SS 304 / SS 316 — closed type
- Diffusers (chambers): Stainless steel SS 304 / SS 316
- Shaft: Stainless steel SS 431 / SS 316
- Mechanical seal: Cartridge — Carbon vs. SiC, EPDM secondary
- Top cover / bottom plate: Cast iron / SS 304
- Wear rings: Engineering plastic / SS — replaceable
- Coupling: Cast iron, spacer-type for seal service
Material of Construction — Drive & frame
- Motor: Standard IEC frame, B5 flange-mounted, F class IP55
- Coupling guard: Sheet metal, powder-coated
- Bearings: In motor (deep-groove ball, sealed)
- Painting: Powder coat / industrial epoxy
Salient Features
- Compact vertical footprint — half the floor area of horizontal pumps
- Suction and discharge on the same centerline — easy piping
- Stamped SS hydraulic — high efficiency and corrosion resistance
- Cartridge mechanical seal — replaceable without dismantling pump
- SS 304 / SS 316 wetted parts options
- Standard motor (IEC frame) — easily replaceable
- VFD-ready when ordered with VPI / inverter-duty motor
- Lower noise level than horizontal end-suction equivalents
- Wide range of stages for fine head selection
Applications
- Pressure boosting in tall buildings
- Reverse osmosis (RO) & water treatment plants
- HVAC chilled / condenser water
- Boiler feed (low-temperature, with cooling)
- Industrial process water
- Sprinkler & micro-irrigation
- Fire jockey pump duty
- CIP (clean-in-place) for food & pharma (SS 316)
Specify liquid temperature, SG, and dosing chemicals for correct material and seal selection.
Foot-mounted suction strainer recommended for open-tank installations.
