Sewage Pumps
Heavy-duty sewage and solids handling pumps for municipal and industrial waste.
Technical data sheet

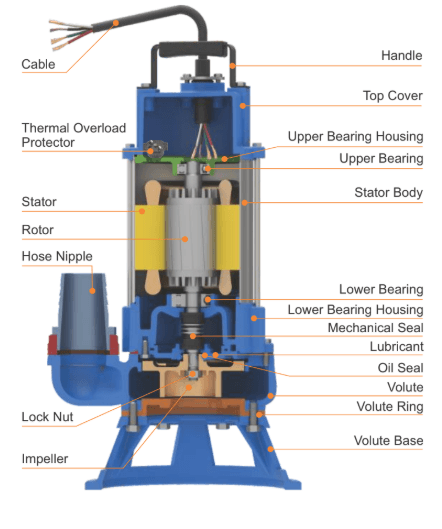

Sewage Submersible Pump
Heavy-duty sewage submersible pump engineered for solids handling, fibrous material, and contaminated liquids in municipal, industrial, and commercial wastewater duty. Non-clog vortex / channel impeller options with reinforced wear plate.
Characteristics
| Motor Rating | HP | 1 to 50 |
|---|---|---|
| kW | 0.75 to 37 | |
| Head Range | Metres | 5 to 50 |
| Discharge | LPM | 200 to 5000 |
| Solids handling | mm | Up to 80 mm spherical (model dependent) |
| Discharge size | mm | 50 / 65 / 80 / 100 / 150 |
| inch | 2 / 2½ / 3 / 4 / 6 | |
| Speed | RPM | 1450 / 2900 |
| Insulation | Class | F (IP68 enclosure) |
| Liquid temp | °C | Up to 40 (continuous); up to 60 (intermittent) |
| Applications | Use | Municipal sewage, STP / ETP, Drainage, Basement sumps, Industrial effluent, Slurry |
Material of Construction — Motor
- Stator: Vacuum impregnated, F class insulation
- Rotor: Aluminium / copper pressure die-cast
- Motor housing: Cast iron, CED coated
- Shaft: Stainless steel SS-420 / SS-410
- Mechanical seal: Tandem (upper carbon vs. ceramic + lower SiC vs. SiC) in oil bath
- Bearings: Sealed deep-groove + thrust ball bearings
- Thermal protection: PTC / thermistor in windings
- Cable: Submersible flat cable, factory-sealed gland
Material of Construction — Pump
- Volute / pump body: Cast iron, CED coated
- Impeller: Cast iron — vortex / single-channel / multi-channel
- Wear plate: Cast iron, hardened / replaceable
- Discharge connection: Cast iron flanged (PN10) or threaded
- Handle: Stainless steel SS 304 / cast iron
- Fasteners: Stainless steel SS 304 / SS 316
Salient Features
- Non-clog vortex / single-channel / multi-channel impeller options
- Reinforced cast iron wear plate at suction for long life
- Heavy-duty IP68 enclosure with double mechanical seal
- Oil chamber between seals for cooling and leak detection
- Thermal sensors embedded in motor windings
- Moisture sensor in seal chamber (alarm-grade variants)
- Float / level-switch friendly operation
- Cast iron impeller dynamically balanced
- Chain-lift handle for guided rail installation
- Submersible flat cable, factory-sealed
Applications
- Municipal sewage lift stations
- Sewage treatment plants (STP)
- Effluent treatment plants (ETP)
- Basement drainage & sump pits
- Industrial effluent handling
- Storm-water drainage
- Slurry pumping (light)
- Construction site dewatering with debris
Specify max solid size, liquid composition, temperature, and operating mode (continuous / intermittent).
For corrosive effluent, advise pH and chemistry for material upgrade (SS 316 / duplex).
